Part VI. Configuration change¶
VNF Manager allows users to perform BIG-IP configuration change by invoking nsd_xxx Workflow and passing corresponding AS3 payload. This lab contains a modified AS3 payload that will provision AFM policy and rules for Firewall layer of Gilan blueprint.
Step 1. Check Existing VNF BIG-IP configuration¶
Check VNF BIG-IP FW rules and configuration. There should be no policy or rules configured
- Check Master VNF BIG-IP Management IP in Openstack Horizon UI:
Project –> Compute –> Instances
- Point the browser to .40 IP of Master VNF BIG-IP and login as admin

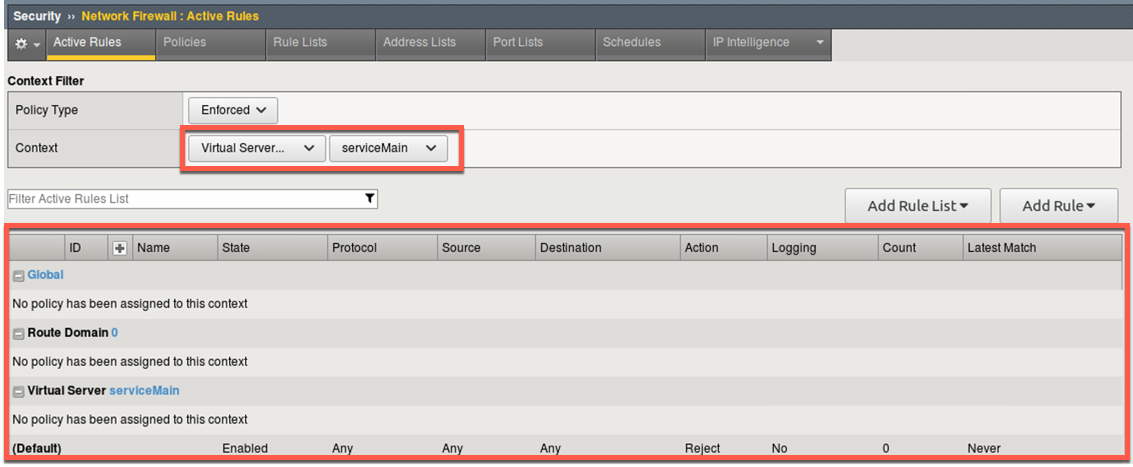

- In f5vnf partition navigate to Security –> Network Firewall –> Active Rules –> Context: Virtual Server
Step 2. Apply updated AS3 configuration¶
- To change the AFM configuration, open as3_update.json on jumphost Desktop and copy it’s contents

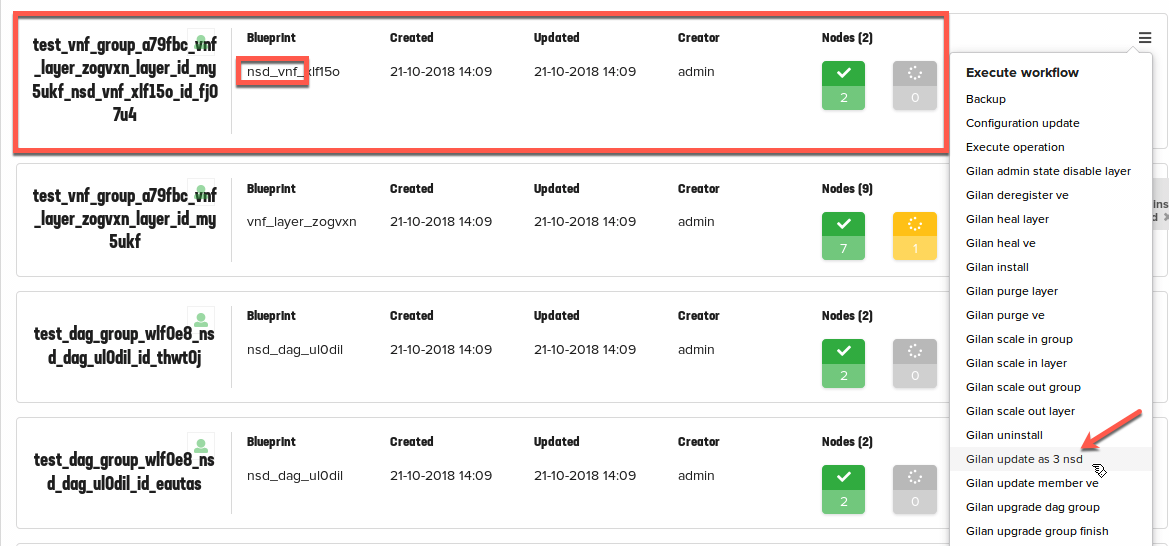

- Select Deployments –> nsd_vnf_xxxx Blueprint
- Expand
, click Gilan update as3 nsd, paste the entire AS3 json payload copied from the file, and then click Execute.
For more information about Install Workflow see: Update FW layer configuration Workflow
AS3 payload for configuration of Firewall rules
{
"class": "AS3",
"action": "deploy",
"persist": true,
"declaration": {
"class": "ADC",
"schemaVersion": "3.0.0",
"id": "cfy_vnf_01",
"label": "vnf",
"remark": "VNF",
"f5vnf": {
"class": "Tenant",
"Shared": {
"class": "Application",
"template": "shared",
"fwAllowedAddressList": {
"addresses": [
"10.0.0.0/8",
"172.20.0.0/16",
"192.168.0.0/16"
],
"class": "Firewall_Address_List"
},
"fwAllowedPortList": {
"class": "Firewall_Port_List",
"ports": [
"8080-8081",
22,
443,
53,
80
]
},
"fwDefaultDenyAddressList": {
"addresses": [
"0.0.0.0/0"
],
"class": "Firewall_Address_List"
},
"fwLogDestinationHsl": {
"class": "Log_Destination",
"distribution": "adaptive",
"pool": {
"use": "poolHsl"
},
"protocol": "tcp",
"type": "remote-high-speed-log"
},
"fwLogDestinationSyslog": {
"class": "Log_Destination",
"format": "rfc5424",
"remoteHighSpeedLog": {
"use": "fwLogDestinationHsl"
},
"type": "remote-syslog"
},
"fwLogPublisher": {
"class": "Log_Publisher",
"destinations": [
{
"use": "fwLogDestinationSyslog"
}
]
},
"fwPolicy": {
"class": "Firewall_Policy",
"rules": [
{
"use": "fwRuleList"
}
]
},
"fwRuleList": {
"class": "Firewall_Rule_List",
"rules": [
{
"action": "accept",
"destination": {
"portLists": [
{
"use": "fwAllowedPortList"
}
]
},
"loggingEnabled": true,
"name": "tcpAllow",
"protocol": "tcp",
"source": {
"addressLists": [
{
"use": "fwAllowedAddressList"
}
]
}
},
{
"action": "accept",
"loggingEnabled": true,
"name": "udpAllow",
"protocol": "udp",
"source": {
"addressLists": [
{
"use": "fwAllowedAddressList"
}
]
}
},
{
"action": "drop",
"loggingEnabled": true,
"name": "defaultDeny",
"protocol": "any",
"source": {
"addressLists": [
{
"use": "fwDefaultDenyAddressList"
}
]
}
}
]
},
"fwSecurityLogProfile": {
"class": "Security_Log_Profile",
"network": {
"logIpErrors": true,
"logRuleMatchAccepts": true,
"logRuleMatchDrops": true,
"logRuleMatchRejects": true,
"logTcpErrors": true,
"logTcpEvents": true,
"logTranslationFields": true,
"publisher": {
"use": "fwLogPublisher"
},
"storageFormat": {
"fields": [
"action",
"bigip-hostname",
"context-name",
"context-type",
"date-time",
"dest-ip",
"dest-port",
"drop-reason",
"protocol",
"src-ip",
"src-port"
]
}
}
},
"poolHsl": {
"class": "Pool",
"members": [
{
"enable": true,
"serverAddresses": [
"255.255.255.254"
],
"servicePort": 514
}
],
"monitors": [
{
"bigip": "/Common/udp"
}
]
},
"lbSelectedRule": {
"class": "iRule",
"iRule": "when LB_SELECTED {log local0. \"Selected server [LB::server]\"}",
"remark": "Log load balanced server"
},
"cpu_killer": {
"remark": "Log load balanced server",
"iRule": "when HTTP_REQUEST {\r\nif {[IP::addr [IP::client_addr] equals 10.1.20.20]} {\r\n# Do nothing and forward traffic to server\r\nlog local0. \"Source IP is 10.1.20.20 - Forwarding to destination...\" \r\nreturn\r\n} else {\r\n # Kill CPU Cycles\r\n log local0. \"Running CPU killer and responding locally...\"\r\n set count 10\r\n for {set i 0} { $i < $count } {incr i} {\r\n set keys [CRYPTO::keygen -alg rsa -salthex 0f0f0f0f0f0f0f0f0f0f -len 1024]\r\n set pub_rsakey [lindex $keys 0]\r\n set priv_rsakey [lindex $keys 1]\r\n set data [string repeat \"rsakeygen1\" 11]\r\n set enc_data [CRYPTO::encrypt -alg rsa-pub -key $pub_rsakey $data]\r\n HTTP::header insert rsa_encrypted \"$enc_data\"\r\n set dec_data [CRYPTO::decrypt -alg rsa-priv -key $priv_rsakey $enc_data]\r\n }\r\n\t# Set some basic response headers\r\n\tset server_name \"BIG-IP ($static::tcl_platform(machine))\"\r\n\tset conn_keepalive \"Close\"\r\n\tset content_type \"text/plain; charset=us-ascii\"\r\n # initialize response page\r\n set page \"[clock format [clock seconds] -format {%A %B,%d %Y - %H:%M:%S (%Z)}]\\r\\n\"\r\n\tappend page \"Hello!\\r\\n\"\r\n # return response page\r\n HTTP::respond 200 content ${page} noserver Server ${server_name} Connection ${conn_keepalive} Content-Type $content_type\r\n}\r\n}\r\n",
"class": "iRule"
},
"profileL4": {
"class": "L4_Profile"
},
"serviceAddress": {
"class": "Service_Address",
"arpEnabled": false,
"spanningEnabled": true,
"virtualAddress": "0.0.0.0"
}
},
"f5_http": {
"class": "Application",
"template": "http",
"serviceMain": {
"allowVlans": [
{
"bigip": "/Common/pgw_dag_net"
}
],
"translateServerAddress": false,
"layer4": "tcp",
"profileHTTP": {
"bigip": "/Common/http"
},
"virtualPort": 0,
"iRules": [
"/f5vnf/Shared/lbSelectedRule",
"/f5vnf/Shared/cpu_killer"
],
"translateServerPort": false,
"profileL4": {
"use": "/f5vnf/Shared/profileL4"
},
"virtualAddresses": [
{
"use": "/f5vnf/Shared/serviceAddress"
}
],
"snat": "none",
"lastHop": "disable",
"policyFirewallEnforced": {
"use": "/f5vnf/Shared/fwPolicy"
},
"securityLogProfiles": [
{
"use": "/f5vnf/Shared/fwSecurityLogProfile"
}
],
"class": "Service_HTTP"
}
},
"f5_inbound": {
"class": "Application",
"template": "generic",
"serviceMain": {
"allowVlans": [
{
"bigip": "/Common/pdn_dag_net"
}
],
"class": "Service_Generic",
"iRules": [
"/f5vnf/Shared/lbSelectedRule"
],
"layer4": "any",
"profileL4": {
"use": "/f5vnf/Shared/profileL4"
},
"snat": "none",
"translateServerAddress": false,
"translateServerPort": false,
"virtualAddresses": [
{
"use": "/f5vnf/Shared/serviceAddress"
}
],
"virtualPort": 0
}
}
}
}
}
Step 3. Validate configuration change¶

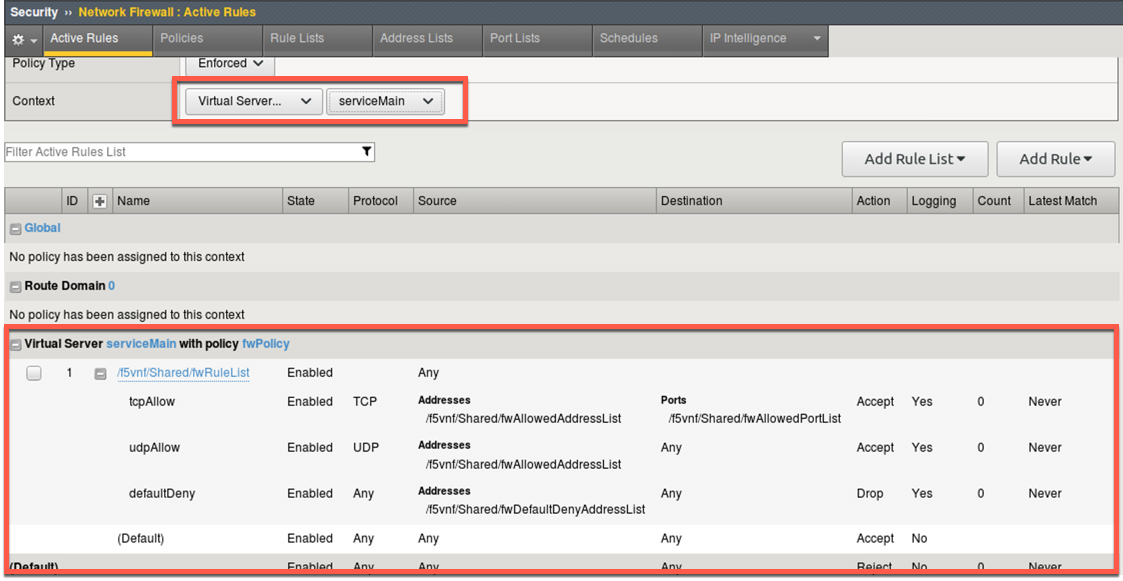

1. Check VNF BIG-IP configuration In f5vnf partition navigate to Security –> Network Firewall –> Active Rules –> Context: Virtual Server
- Run test traffic through Gilan to ensure Firewall configuration doesn’t block the flow.
Note
This test is the same as in Part III Step 3 of this lab guide
