Update FW layer configuration Workflow¶

Workflow name: ``AS3 Update``

Workflow description: Reinstalls the whole subgraph of the system topology by applying the uninstall and install workflows’ logic respectively. The subgraph consists of all the node instances that are contained in the compute node instance which contains the failing node instance and/or the compute node instance itself. Additionally, this workflow handles unlinking and establishing all affected relationships in an appropriate order.

Workflow parameters:

• ``node_instance_id``: The ID of the failing node instance that needs healing. The whole compute node instance containing (or being) this node instance will be reinstalled.

Workflow high-level pseudo-code:

1. Retrieve the compute node instance of the failed node instance.
2. Construct a compute sub-graph (see note below).
3. Uninstall the sub-graph:
   • Execute uninstall lifecycle operations (stop, delete) on the compute node instance and all it’s contained node instances [1].
   • Execute uninstall relationship lifecycle operations (unlink) for all affected relationships.
4. Install the sub-graph:
   • Execute install lifecycle operations (create, configure, start) on the compute node instance and all it’s contained nodes instances.
   • Execute install relationship lifecycle operations (preconfigure, postconfigure, establish) for all affected relationships.

A compute sub-graph can be thought of as a blueprint that defines only nodes that are contained inside a compute node. For example, if the full blueprint looks something like this: {{< highlight yaml >}} …

node_templates:

webserver_host: type: cloudify.nodes.Compute relationships: - target:
floating_ip type: cloudify.relationships.connected_to

webserver: type: cloudify.nodes.WebServer relationships: - target:
webserver_host type: cloudify.relationships.contained_in

war: type: cloudify.nodes.ApplicationModule relationships: - target:
webserver type: cloudify.relationships.contained_in - target: database
type: cloudify.relationships.connected_to

database_host: type: cloudify.nodes.Compute

database: type: cloudify.nodes.Database relationships: - target:
database_host type: cloudify.relationships.contained_in

floating_ip: type: cloudify.nodes.VirtualIP
...

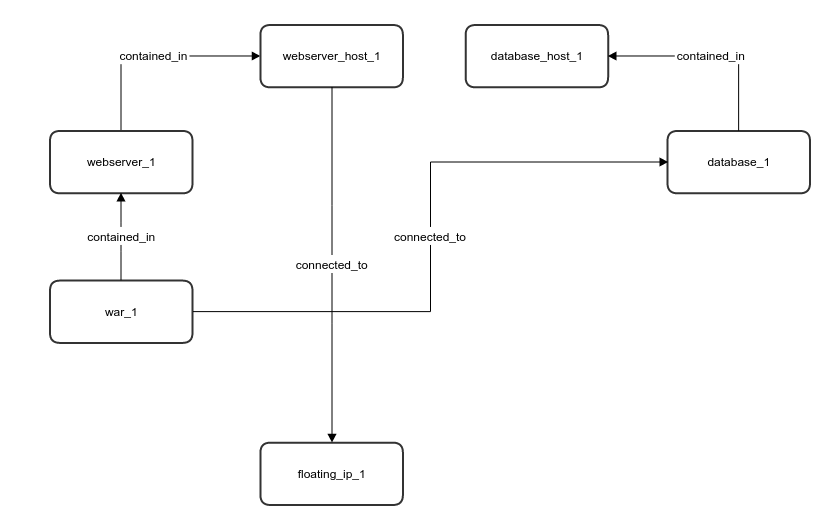

Then the corresponding graph will look like so:

Blueprint as Graph

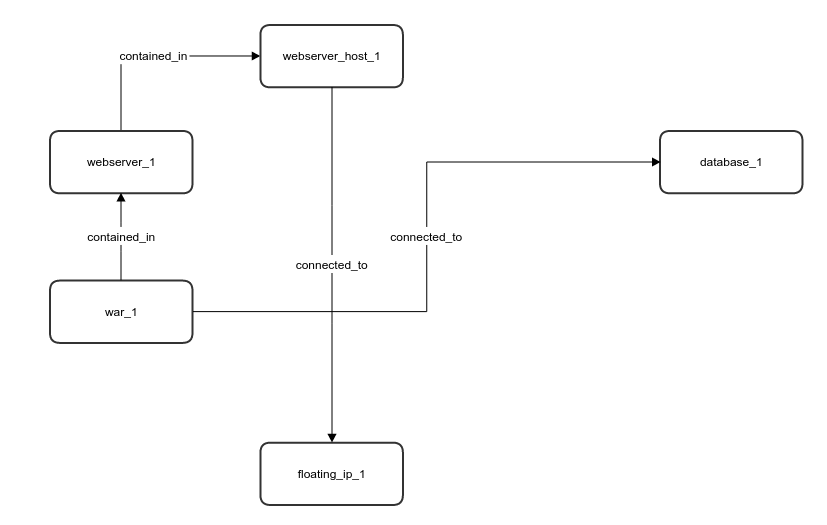

And a compute sub-graph for the ``webserver_host`` will look like:

Blueprint as Graph

NOTE: This sub-graph determines the operations that execute during the workflow execution. In this example:

• The following node instances will be re-installed: war_1, webserver_1 and webserver_host_1.
• The following relationships will be re-established: war_1 connected to database_1 and webserver_host_1 connected to floating_ip_1.
